5-in-1 XVR Standard Series

AVTECH DGD1009AX-U2 H.265 5MP PENTABRID 8CH XVR with Push Video
DGD1009AX-U2
Key Features 8CH Recorder
In stock
$290.00 CAD $290.00 CAD $210.00 CAD
Shipping calculated at checkout.

Key Features

  • Easy to Use Interface
  • AVTECH Free DDNS Service
  • Plug & play Interface
  • Alarm Scenario Customization
  • Unlimited Channel Remote Live View
  • Active Event Notification with APP
  • Free & Quick P2P Cloud Service
Easy Installation

Quick and hassle-free setup, with user-friendly manuals and plug-and-play support

Risk-Free Returns

Enjoy peace of mind with our 30-day return policy.

One-Year Warranty

All purchases come with a 1-year warranty, except for hard disks.

No Monthly Fees

Use AVTECH's EagleEyes DDNS service completely free

Easy Installation

Quick and hassle-free setup, with user-friendly manuals and plug-and-play support

Risk-Free Returns

Enjoy peace of mind with our 30-day return policy.

One-Year Warranty

All purchases come with a 1-year warranty, except for hard disks.

No Monthly Fees

Use AVTECH's EagleEyes DDNS service completely free

AVTECH DGD1009AX-U2 H.265 5MP PENTABRID 8CH XVR with Push Video
Scroll to section
AVTECH DGD1009AX-U2 H.265 PENTABRID XVR

Overview

The AVTECH DGD1009AX-U2   is  a  versatile 8-channel Pentabrid XVR optimized for hybrid surveillance systems, with robust support for analog cameras alongside modern IP technology. Combining high-efficiency H.265 compression, Push Video alerts, and backward compatibility, it delivers a cost-effective, future-ready solution for upgrading legacy analog setups while maintaining 5MP clarity for IP expansion.

Technical Highlights

Input Channels:            8x pentabrid channels (IP / TVI / CVI / Analog HD / 960H)
Max Analog Res:          1080p (TVI/AHD/CVI) or 960H (CVBS)
Recording Res:             Up to 5MP (IP) / 1080p (Analog)
Video Output:               HDMI (4K), VGA (1080p), BNC (CVBS)
Alarm I/O:                     4x in, 1x out (for sensors/sirens)
Codec:                           H.265+/H.265/H.264 (all formats)

Ideal Applications for Analog Mode

Legacy System Modernization:   Schools, warehouses, or small businesses with analog cameras.
Budget-Conscious Sites:   Extend the life of existing analog infrastructure.
Hybrid Security Hubs:    Combine analog perimeter cams with 5MP IP units at critical entry points.


Specifications

DGD1009AX-U2

  • key specifications

    • Video

      Video Input                     8 pentabrid channels
      Video Output               BNC VGA  HDMI

      Audio

      Audio Input                     4
      Audio Output               1 (Mono)

      External I/O


      RS485                                   YES
      Alarm Input                     4 in
      Alarm Output                  1 out

      General

      Hard Disk Storage         20TB SATA HDD x 1
      SATA Interface                YES
      USB Mouse Control             YES
      Power Supply                                    12V / 2.5A
      Operating Temperature               0ºC ~ 40ºC
      Operating Humidity                      10% ~ 85%
      Dimensions(mm)                            260 x 235.7 x 48
      Net Weight (kg)                               1.35

      Others

      Push Video                                      YES (8 channels)
      Push Status                                      YES
      EaZy Networking                                      YES
      Spot Monitor Support                           YES
      AVTECH Free DDNS service              YES

    • sku DGD1009AX-U2

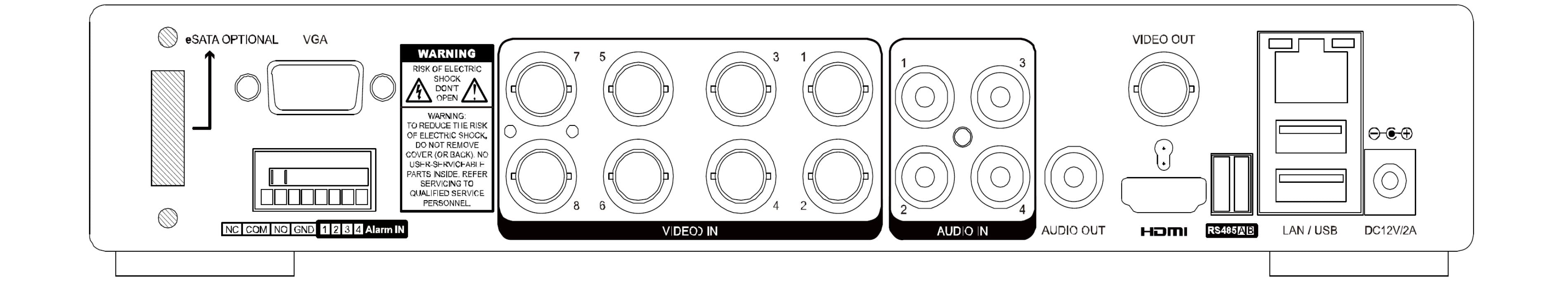

    • what is rear panel like

Include in the box


8CH XVR Recorder with Push Video

Wired Mouse

AC Power Adapter

Quick Start Guide
