Key Features

Tamper switch
Fireproof ABS housing
Automatic temperature compensation
Pulse count optional
Alarm output N.C./ N.O. optional

Wired PIR Motion Detector

SECURESURVEIL SV-101PIR Wired Wide Angle PIR Motion Detector

Name: SECURESURVEIL SV-101PIR Wired Wide Angle PIR Motion Detector
Brand: securesurveil
Price: 15.0 CAD
Availability: InStock

SV-101PIR

In stock

$15.00 CAD ~~$18.00 CAD~~

Sale 16.67% $3.00 CAD (16.67%)

Shipping calculated at checkout.

Key Features

Tamper switch
Fireproof ABS housing
Automatic temperature compensation
Pulse count optional
Alarm output N.C./ N.O. optional

Easy Installing

Quick and hassle-free setup, with user-friendly manuals and plug-and-play support

Risk-Free Returns

Enjoy peace of mind with our 30-day return policy.

One-Year Warranty

All purchases come with a 1-year warranty, except for hard disks.

No Monthly Fees

Own your alarm system with no contracts, Pay once, protect forever.

Easy Installing

Quick and hassle-free setup, with user-friendly manuals and plug-and-play support

Risk-Free Returns

Enjoy peace of mind with our 30-day return policy.

One-Year Warranty

All purchases come with a 1-year warranty, except for hard disks.

No Monthly Fees

Own your alarm system with no contracts, Pay once, protect forever.

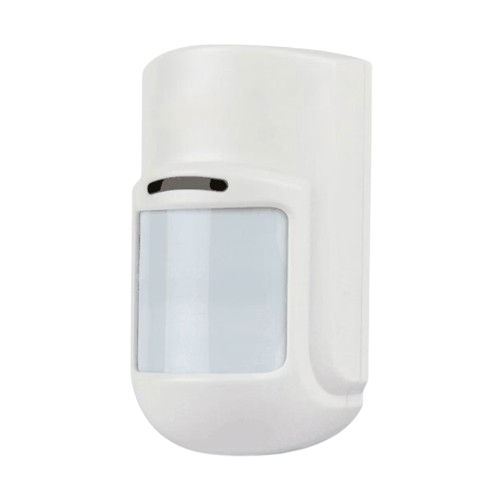

SECURESURVEIL SV-101PIR Wired Wide Angle PIR Motion Detector

Scroll to section

Wired Wide Angle PIR Motion Detector

Overview

is a wide angle passive infrared detector, exquisite design, easy installation. Fit for the locations of the balcony, window, door, corridors, etc. Imported high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, pulse count, LED switch, etc. selectable functions, can be integrated with wired alarm host.

Specifications

key specifications
- General

  Working Voltage: 9V-16V
  Standby Current: 18mA
  Alarm Current: 20mA
  Wide Detector Angle: 110° (10.6mX10.6m)
  Detection Distance: 12m (25℃)
  Detection Speed: 0.2-7m/s
  Sensitivity: Level 2 adjustable
  Installation Way: Wall Hanging
  Installation Height: 1.1m-3.1m Adjustable
  Alarm output: NC
  LED indicator light: ON/OFF optional
  Operating temperature: -10°C to 50°C
  Item Size: 108*65*52mm(L*W*H)
  Item Weight: 72g
- Packaging Info
  Dimensions (mm) 132 X 80 X 50
  Weight (g) 95
- sku SV-101PIR

Include in the box

Wired Wide Angle PIR Detector

User Guide
