Power Jack and Networking adapter

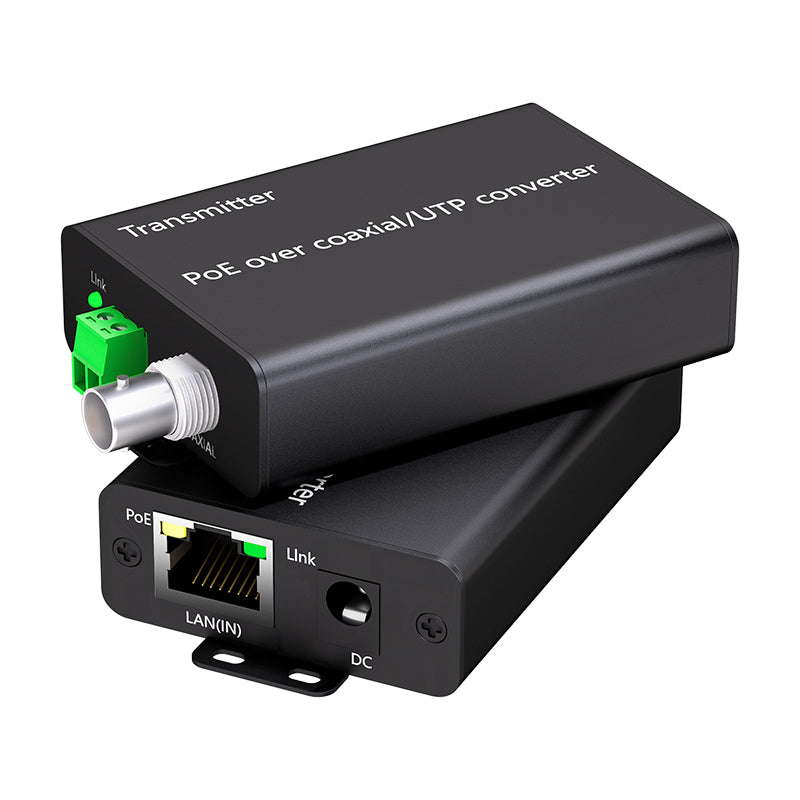

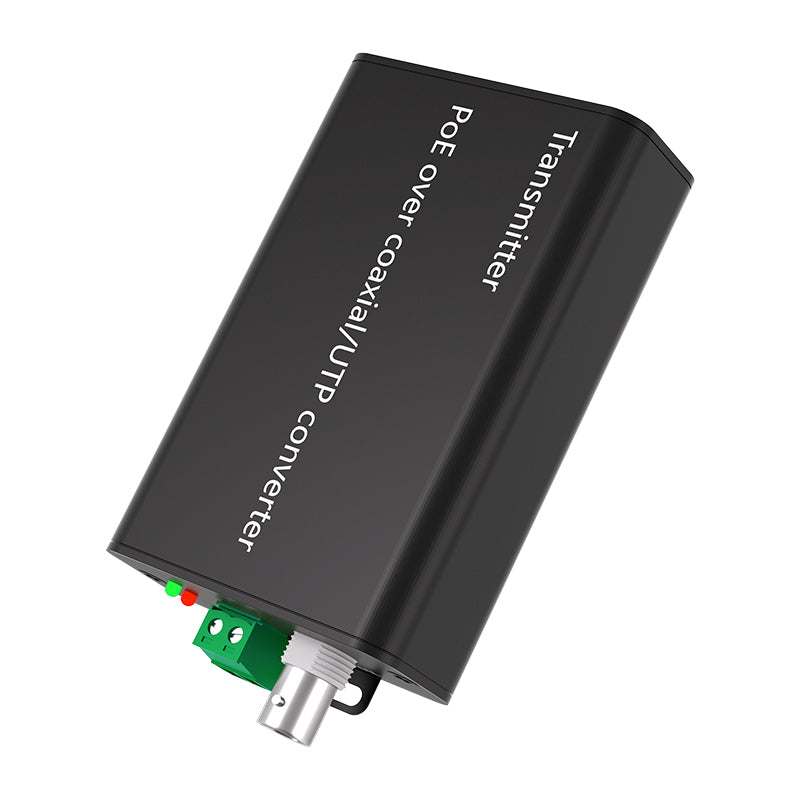

SECURESURVEIL SW-905M9OE POE Ethernet Over Coax / UTP Converter Max 1000m Power and Data Transmission Max100Mbps Over Regular RG59/6 Coaxial Cable (2-Pack)

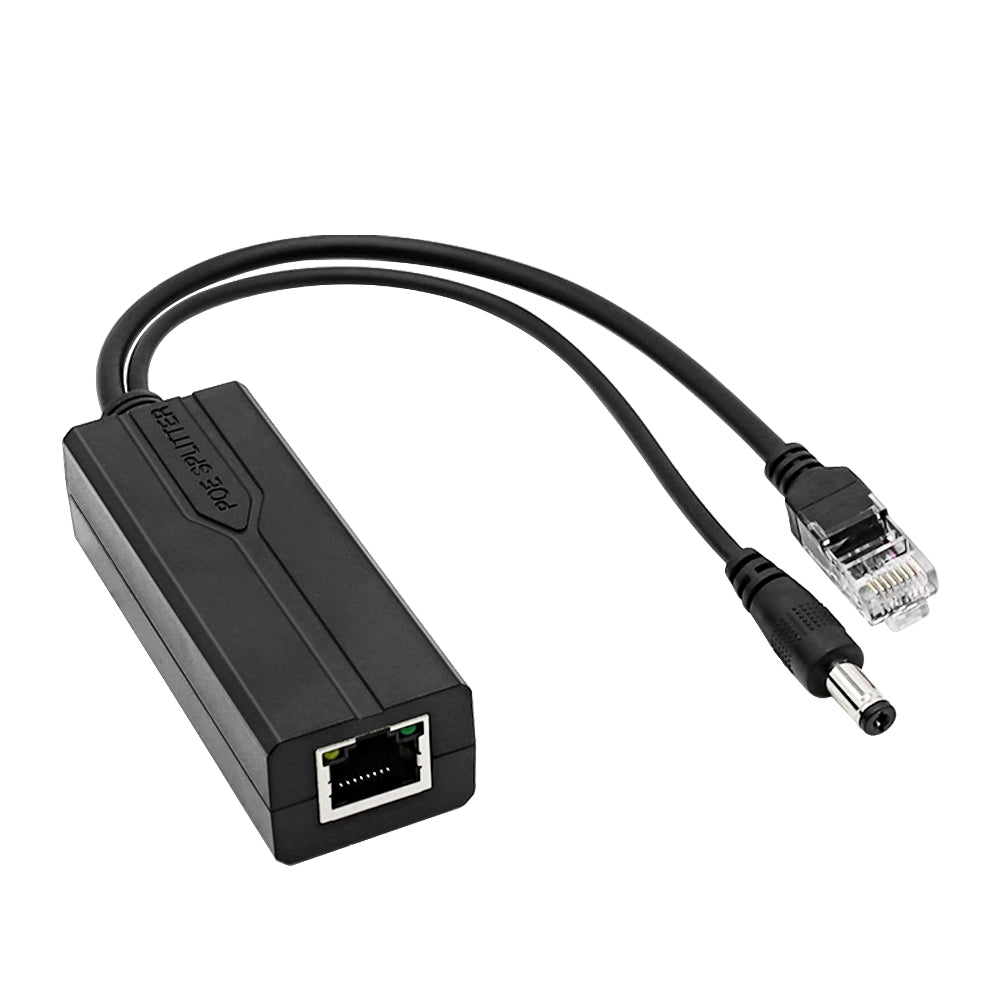

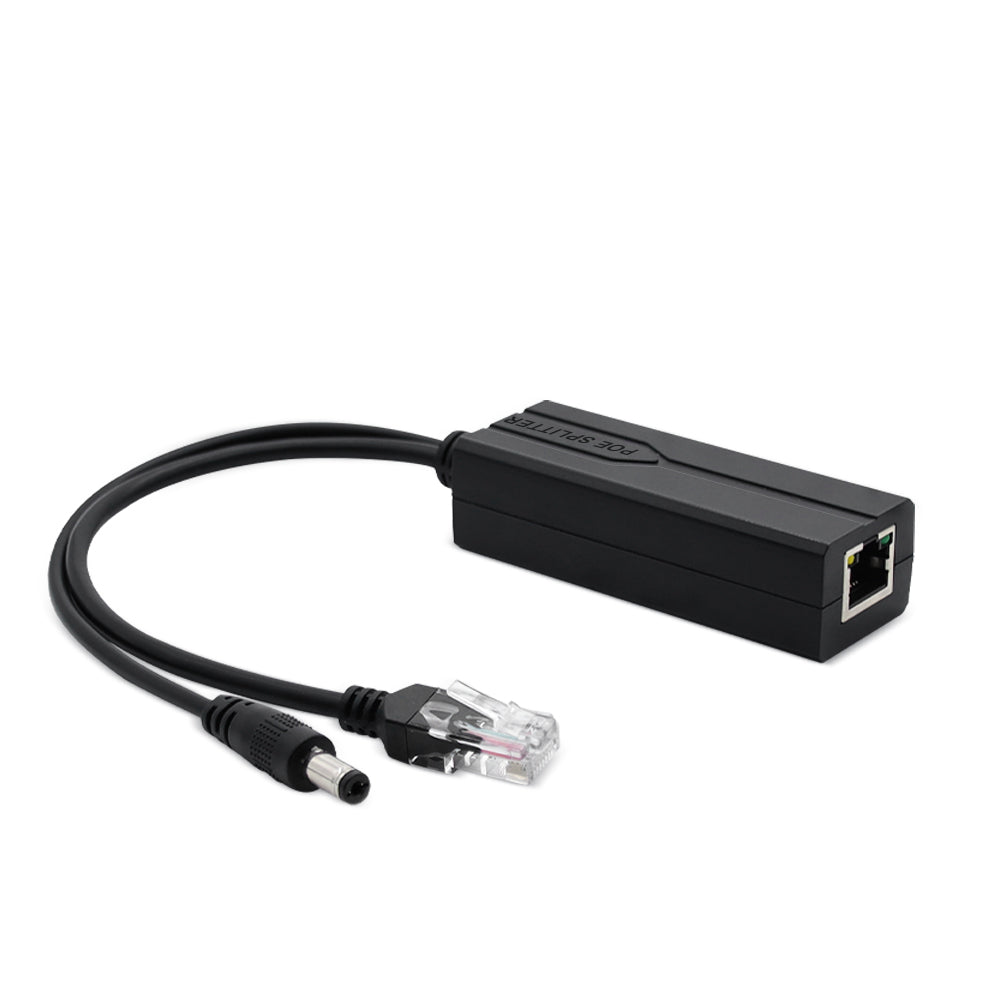

SECURESURVEIL SW-PD02S/G Gigabit PoE Splitter 12V 2A/1.2A Output with IEEE 802.3af/at Compliant 10,100,1000Mbps Power Over Ethernet Splitter Adapter for Security Camera CCTV Surveillance 5.5x2.1mm DC Plug Cable
Input 1 × RJ45 port (PoE IN)
Output
1 × RJ45 (data only), 1 × DC 5.5×2.1mm plug (power)
Material ABS+PC flame-retardant housing
Compliance IEEE 802.3af/at standards
Power Supply Modes
End-team (1/2+, 3/6−), Mid-team (4/5+, 7/8−)
Protection 2KV insulation, short
Performance Low ripple, high efficiency
Installation
Plug & play, no configuration required
Net Weight 60g
Operating Temperature -10℃~75℃
Dimensions77*28*23 mm
(Cable Length 223 mm)
Input 1 × RJ45 port (PoE IN)
Output
1 × RJ45 (data only), 1 × DC 5.5×2.1mm plug (power)
Material ABS+PC flame-retardant housing
Compliance IEEE 802.3af/at standards
Power Supply Modes
End-team (1/2+, 3/6−), Mid-team (4/5+, 7/8−)
Protection 2KV insulation, short
Performance Low ripple, high efficiency
Installation
Plug & play, no configuration required
Net Weight 60g
Operating Temperature -10℃~75℃
Dimensions77*28*23 mm
(Cable Length 223 mm)

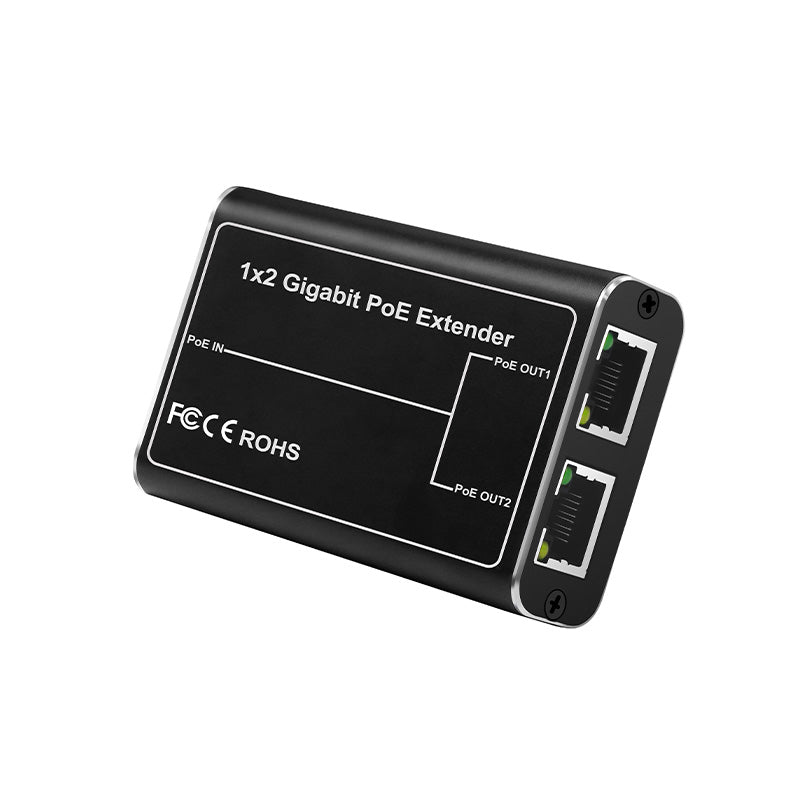

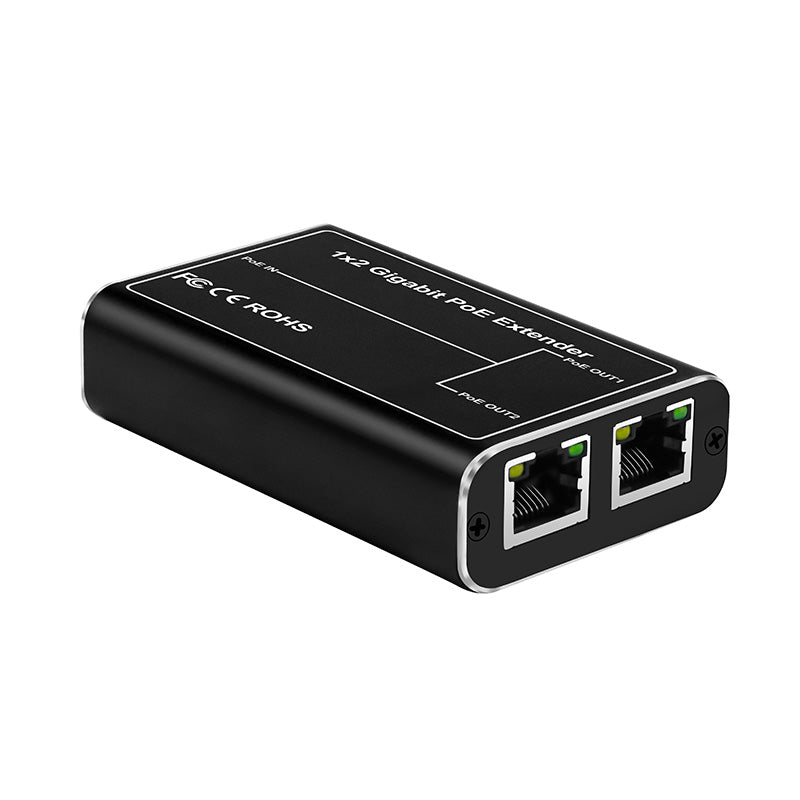

SECURESURVEIL SW-POE102-G 1X2 Port Gigabit POE Extender Comply IEEE 802.3af/at Standard 1 000Mbps, Daisy Chain POE Repeater 100 Meters(328 ft) Extender 1 in 2 Out for POE IP Camera Over Cat5/Cat6 or UTP Cables
Device
PoE input: 1 RJ45 port(DC 48-57V)
PoE output: 2 RJ45 port
Input power: 30 Watts Max
Output power: 15.4 Watts Max Each RJ45 Port
Network Medium: Cat5 ,Cat5e,Cat6,Cat6e,UTP cable(less than 120m)
Daisy Chain Distance: up to 700m(6 pieces)
Repeater Mode: Store and forward
MAC Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 400Mbps
PoE Standard: IEEE 802.3af/at
PoE Cable Core: 1/2(+), 3/6(-)
Power Supply Type: Mode A,End-Span
LED Display: PoE Working status, Ethernet
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet.
Electromanetic Radiation: FCC Class A, CE
Device
PoE input: 1 RJ45 port(DC 48-57V)
PoE output: 2 RJ45 port
Input power: 30 Watts Max
Output power: 15.4 Watts Max Each RJ45 Port
Network Medium: Cat5 ,Cat5e,Cat6,Cat6e,UTP cable(less than 120m)
Daisy Chain Distance: up to 700m(6 pieces)
Repeater Mode: Store and forward
MAC Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 400Mbps
PoE Standard: IEEE 802.3af/at
PoE Cable Core: 1/2(+), 3/6(-)
Power Supply Type: Mode A,End-Span
LED Display: PoE Working status, Ethernet
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet.
Electromanetic Radiation: FCC Class A, CE
